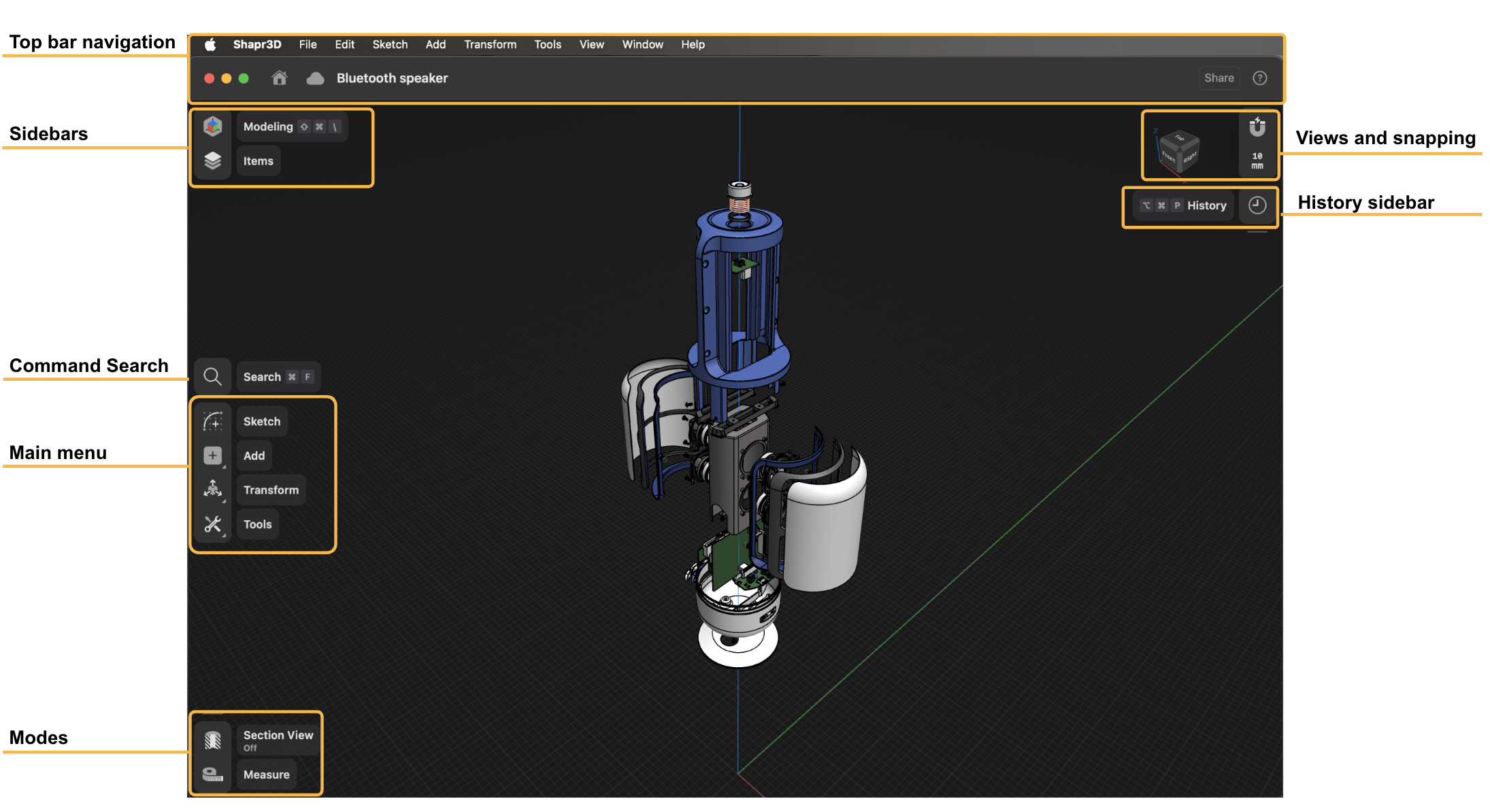

The top bar navigation is where you can access most settings and basic controls. From left to right, you can find the following:
Back to Dashboard – Located at the Windows title bar, this arrow brings you back to the Dashboard.
Project name and Sync – Where you can find and rename your project name and access Sync.
File menu – Opens the basic file commands such as New project, New Drawing…, and Export to…
Edit menu – Opens the basic edit commands such as Undo, Redo, Select all, Deselect all.
View menu – Opens the basic view commands related to your grid position field of view, and more.
Help menu – Opens the basic help settings such as keyboard shortcuts, tutorial videos, and links to Shapr3D Manual and Shapr3D Community.
Undo – Shortcut to the Undo command, where you can revert your previous interaction.
Redo– Shortcut to the Redo command, where you can redo your previous interaction.
Share – Has a Share tab where you can create a Webviewer link that you can share with anyone, and an Export tab where you can export your projects.
Help – Shortcut to the Help menu.
More Settings – Contains the options for Import, Export, and Settings.
Sidebars
The sidebars section is where you can access the Project Sidebar and Items Manager. The Project Sidebar is where you can easily jump between the different spaces and access relevant shortcuts.
Modeling– What you see while in the modeling space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
Visualization– What you see while in the Visualization space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
Drawings – What you see while in the 2D Drawings space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.

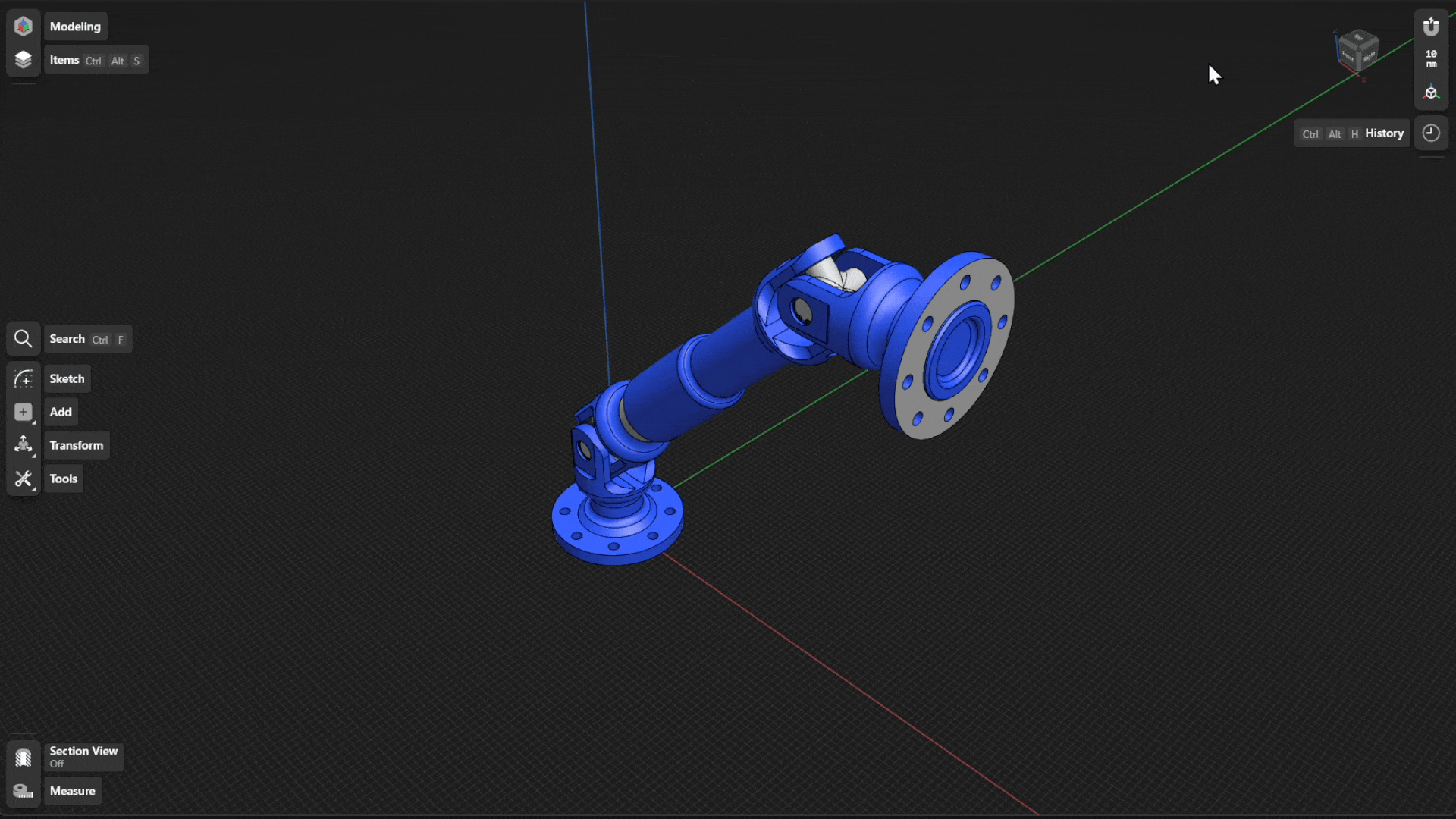

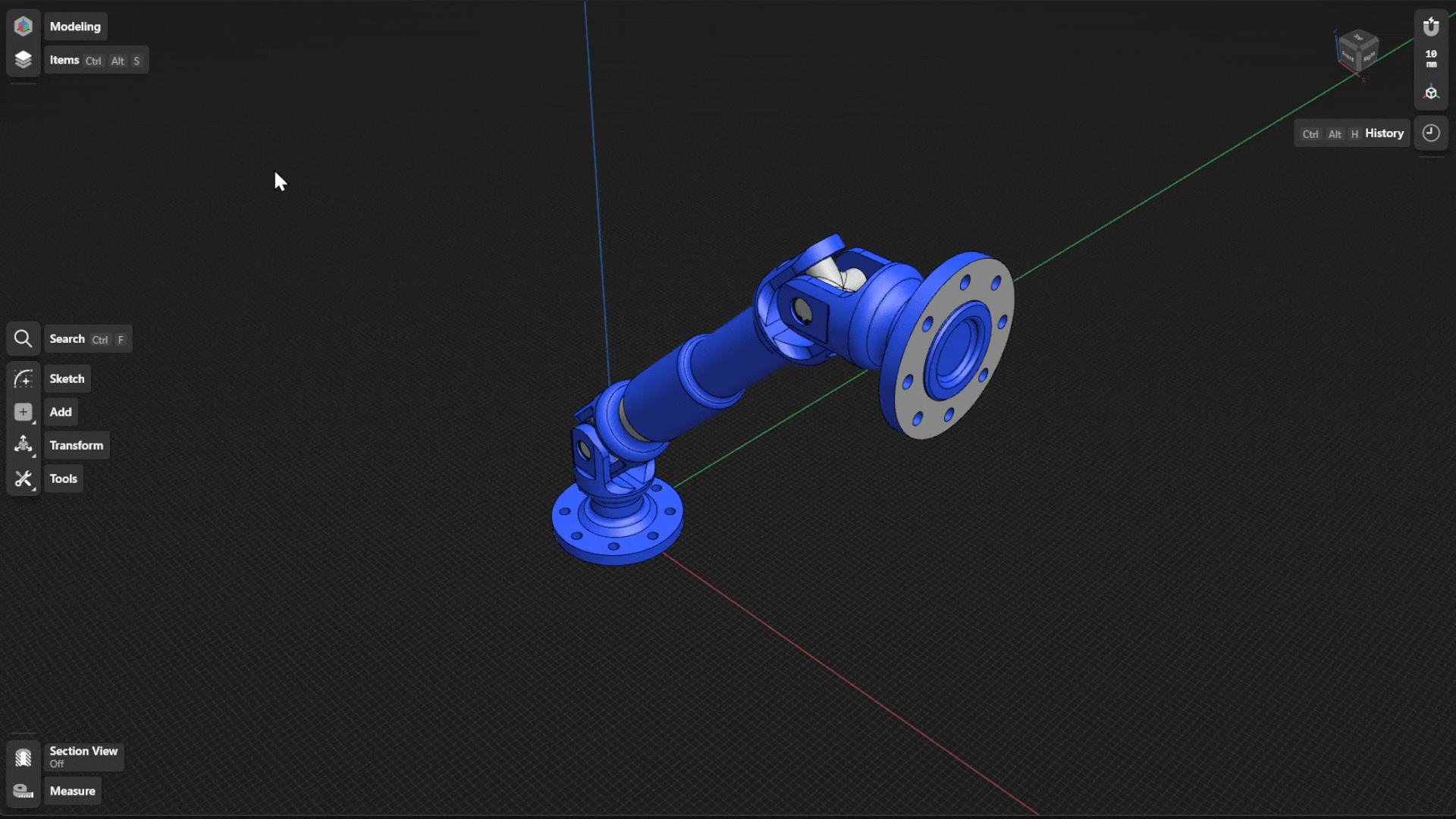

The main menu displays the project sidebar and modeling tools. At the top of the main menu, you can also find the Command Search. In the default state, only the icons are visible and depending on your preferred setting, you can hover your mouse over the icons to see their names.
Sketch – Opens the sketch and constraint tools menu. To learn more about each sketch or constraint tool, visit Sketch menu and Constraints menu.
Add – Opens the add menu. To learn more about each tool, visit Add menu.
Transform – Opens the transform menu. To learn more about each tool, visit Transform menu.
Tools – Opens the tools menu. To learn more about each tool, visit Tools menu.
Modes
The selection-based mode area is where you can find modes that you can turn on or turn off. The menus in this area adapt to your selection so it only shows you the relevant modes that you need.
Section view– Turns on and turns off Section View.
Isolate – Turns on and turns off Isolate Mode. This mode is visible while using Items Manager and other relevant tools
Measure –Turns on Measure Mode where you can select items to measure.
Views and snapping
Orientation Cube – Changes the view orientation view of your project.
Snaps / Guides – Opens a popover where you can turn on or off snapping to the grid, sketch guidelines and points, and 3D guide points. You can also show guide points and snapping hints.
Units – The place to set your desired unit, lock your grid, and customize specific format settings with inches and degrees. This # icon also displays the current grid resolution of your modeling space, which changes according to the level of zoom.
More Settings – Contains the options for Import, Export, and Settings.
Sidebars
The sidebars section is where you can access the Project Sidebar and Items Manager. The Project Sidebar is where you can easily jump between the different spaces and access relevant shortcuts.
Modeling– What you see while in the modeling space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
Visualization – What you see while in the Visualization space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
Drawings – What you see while in the 2D Drawings space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
The main menu displays the project sidebar and modeling tools. At the top of the main menu, you can also find the Command Search. In the default state, only the icons are visible and depending on your preferred setting, you can hover your mouse over the icons to see their names.
Sketch – Opens the sketch and constraint tools menu. To learn more about each sketch or constraint tool, visit Sketch menu and Constraints menu.
Add – Opens the add menu. To learn more about each tool, visit Add menu.
Transform – Opens the transform menu. To learn more about each tool, visit Transform menu.
Tools – Opens the tools menu. To learn more about each tool, visit Tools menu.
Undo – Shortcut to the Undo command, where you can revert your previous interaction.
Redo– Shortcut to the Redo command, where you can redo your previous interaction.
Modes
The selection-based mode area is where you can find modes that you can turn on or turn off. The menus in this area adapt to your selection so it only shows you the relevant modes that you need.
Section view– Turns on and turns off Section View.
Isolate – Turns on and turns off Isolate Mode. This mode is visible while using Items Manager and other relevant tools
Measure –Turns on Measure Mode where you can select items to measure.
Views and snapping
Orientation Cube – Changes the view orientation view of your project.
Snaps / Guides – Opens a popover where you can turn on or off snapping to the grid, sketch guidelines and points, and 3D guide points. You can also show guide points and snapping hints.
Units – The place to set your desired unit, lock your grid, and customize specific format settings with inches and degrees. This # icon also displays the current grid resolution of your modeling space, which changes according to the level of zoom.
More Settings – Contains the options for Import, Export, and Settings.
Sidebars
The sidebars section is where you can access the Project Sidebar and Items Manager. The Project Sidebar is where you can easily jump between the different spaces and access relevant shortcuts.
Modeling – What you see while in the modeling space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
Visualization – What you see while in the Visualization space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
Drawings – What you see while in the 2D Drawings space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
The main menu displays the project sidebar and modeling tools. At the top of the main menu, you can also find the Command Search. In the default state, only the icons are visible and depending on your preferred setting, you can hover your mouse over the icons to see their names.
Sketch – Opens the sketch and constraint tools menu. To learn more about each sketch or constraint tool, visit Sketch menu and Constraints menu.
Add – Opens the add menu. To learn more about each tool, visit Add menu.
Transform – Opens the transform menu. To learn more about each tool, visit Transform menu.
Tools – Opens the tools menu. To learn more about each tool, visit Tools menu.
Modes
The selection-based mode area is where you can find modes that you can turn on or turn off. The menus in this area adapt to your selection so it only shows you the relevant modes that you need.
Section view– Turns on and turns off Section View.
Isolate – Turns on and turns off Isolate Mode. This mode is visible while using Items Manager and other relevant tools
Measure –Turns on Measure Mode where you can select items to measure.
Views and snapping
Orientation Cube – Changes the view orientation view of your project.
Snaps / Guides – Opens a popover where you can turn on or off snapping to the grid, sketch guidelines and points, and 3D guide points. You can also show guide points and snapping hints.
Units – The place to set your desired unit, lock your grid, and customize specific format settings with inches and degrees. This # icon also displays the current grid resolution of your modeling space, which changes according to the level of zoom.
– Located at the Windows title bar, this arrow brings you back to the Dashboard.
– Where you can find and rename your project name and access Sync.
– Shortcut to the Undo command, where you can revert your previous interaction.
– Shortcut to the Redo command, where you can redo your previous interaction.
– Shortcut to the Help menu.
– Contains the options for Import, Export, and Settings.
– What you see while in the modeling space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
– What you see while in the Visualization space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
– What you see while in the 2D Drawings space. This opens the project sidebar where you can easily navigate between the modeling, Visualization, and 2D Drawings space.
– Shows the Items Manager.
– Opens the command search box.
– Opens the sketch and constraint tools menu. To learn more about each sketch or constraint tool, visit Sketch menu and Constraints menu.
– Opens the add menu. To learn more about each tool, visit Add menu.
– Opens the transform menu. To learn more about each tool, visit Transform menu.
– Opens the tools menu. To learn more about each tool, visit Tools menu.
– Turns on and turns off Section View.
– Turns on and turns off Isolate Mode. This mode is visible while using Items Manager and other relevant tools
– Turns on Measure Mode where you can select items to measure.
– Changes the view orientation view of your project.
– Opens a popover where you can turn on or off snapping to the grid, sketch guidelines and points, and 3D guide points. You can also show guide points and snapping hints.
– The place to set your desired unit, lock your grid, and customize specific format settings with inches and degrees. This # icon also displays the current grid resolution of your modeling space, which changes according to the level of zoom.
– Opens the Views and Appearance.
– Located at the top bar navigation, Home brings you back to the Dashboard.
– Where you can find your project name and access Sync.
– Opens the basic help settings such as keyboard shortcuts, tutorial videos, and link to Shapr3D Manual and Shapr3D Community.
– Where you can view your project name and access Sync.
