Translate

The Translate icon-transform-translate.png tool provides a precise way to shift objects from one specific point to another. The Translate tool can reposition sketches, sketch profiles, or bodies.

To translate geometry:

  1. Go to Transform > Translate.
    For other methods of accessing this tool, visit Accessing tools.
  2. Select the sketches, sketch profiles, or bodies you want to translate.
  3. Select Next.
  4. If you want to translate a copy of your selection rather than the original, select Copy.
  5. Select the start and end points of the desired movement. Both points snap to the grid, edges, or vertices.
  6. Select Done.

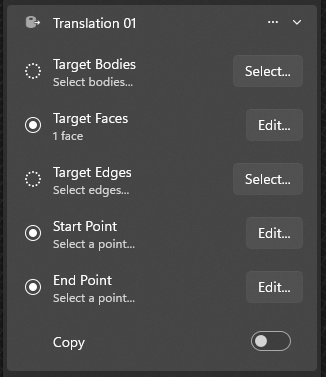

History settings

To manage history settings for the Translate action, find the step for your specific translation and then view or modify the following:

  • Target Bodies – Click/tap Edit… or Select… to choose a different target body and then select Done to finish.
  • Target Faces – Click/tap Edit… or Select… to choose a different target face and then select Done to finish.
  • Target Edges – Click/tap Edit… or Select… to choose a different target edge and then select Done to finish.
  • Start Point – Click/tap Edit… or Select… to choose a different start point and then select Done to finish.
  • End Point – Click/tap Edit… or Select… to choose a different end point and then select Done to finish.
  • Copy – Toggle the slider to turn on or off the original copy.




Learn more by watching the video below:
