Replace Face

You can use the Replace Face icon-tools-replace-face.png tool to extend or trim a selected face to match another face. Replace Face can be a useful tool to modify flat planar faces generated by tools such as extrude. It can also be an effective method for matching the faces of connected bodies.

To use the Replace Face tool:

  1. Go to Tools > Replace Face.
    For other methods of accessing this tool Accessing tools.
  2. Select the face or faces you want to replace. Faces to replace will be highlighted in blue and marked with the Replace Face badge.
    Note: You can select the badge to redefine a face as a face to be replaced or a target face.
  3. Select the replacement face. This face will be highlighted in purple and marked with the target badge. The face you are replacing will be extended or trimmed to meet the target face.
    Note: You can select the badge to redefine a face as a face to be replaced or a target face.

  4. If necessary, adjust the Other Side setting at the left.
  5. To finish, Select Done.

History settings

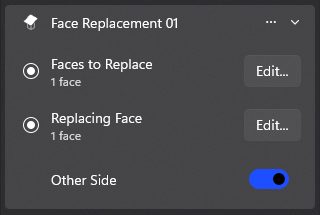

To manage history settings for the Replace Face action, find the step for your specific replacement face and then view or modify the following:

  • Faces to Replace – Click/tap Edit… or Select… to choose a different face to replace and then select Done to finish.
  • Replacing Face – Click/tap Edit… or Select… to choose a different replacing face and then select Done to finish.
  • Other Side – Turn on to extend the face replacement to the other side of the replacing face.




Learn more by watching the video below:
