5.480 - Views in 2D Drawings

Model more effortlessly with these new updates to 2D Drawings and Section View:

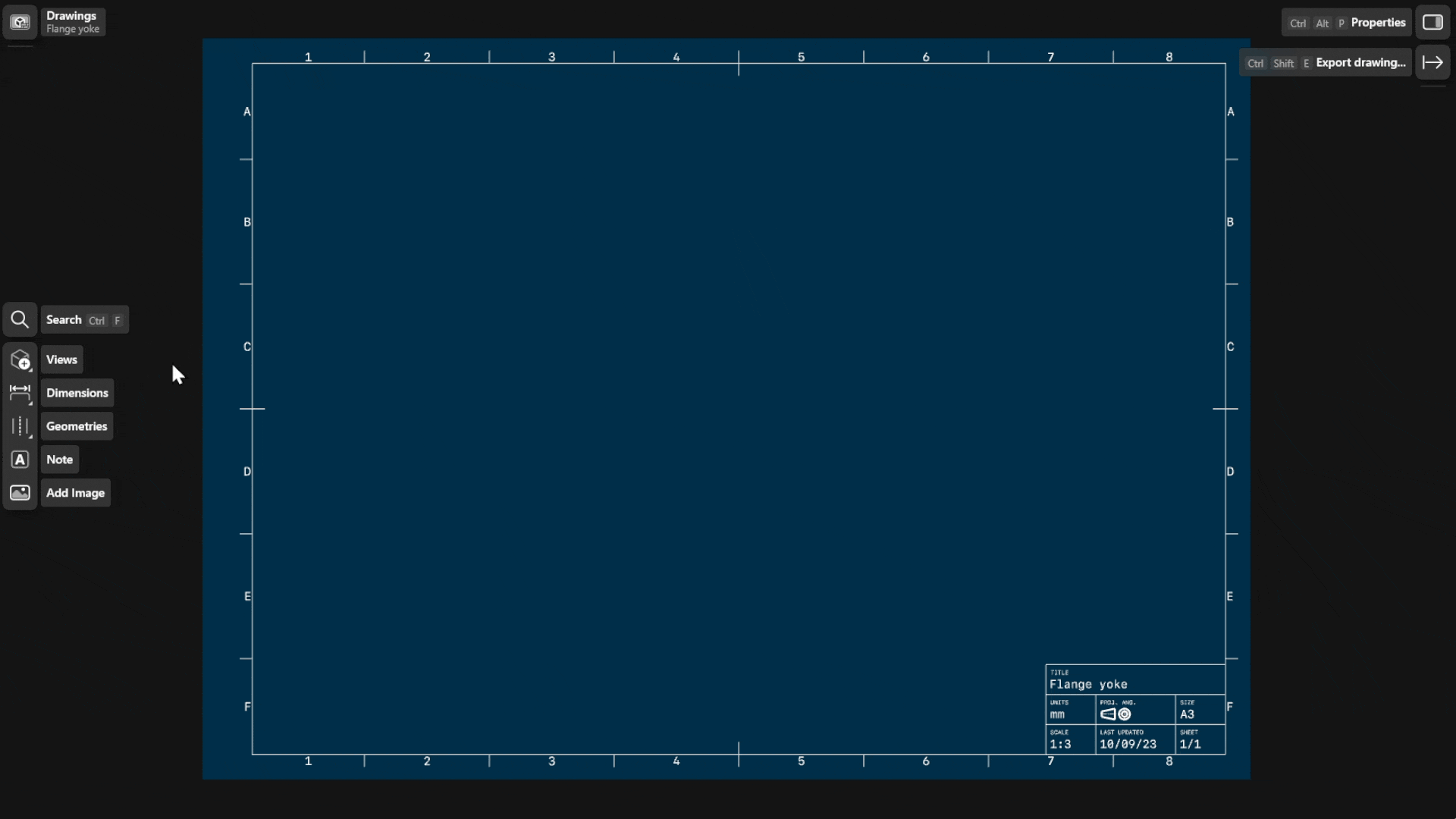

Drag 2D drawing views with a single click

Quickly organize your 2D Drawings with the new option to drag your views with just a single click. Now you don't need to add a base view first before repositioning it.

Just drag any of the previews anywhere on the drawing sheet to instantly place and reposition the base view.

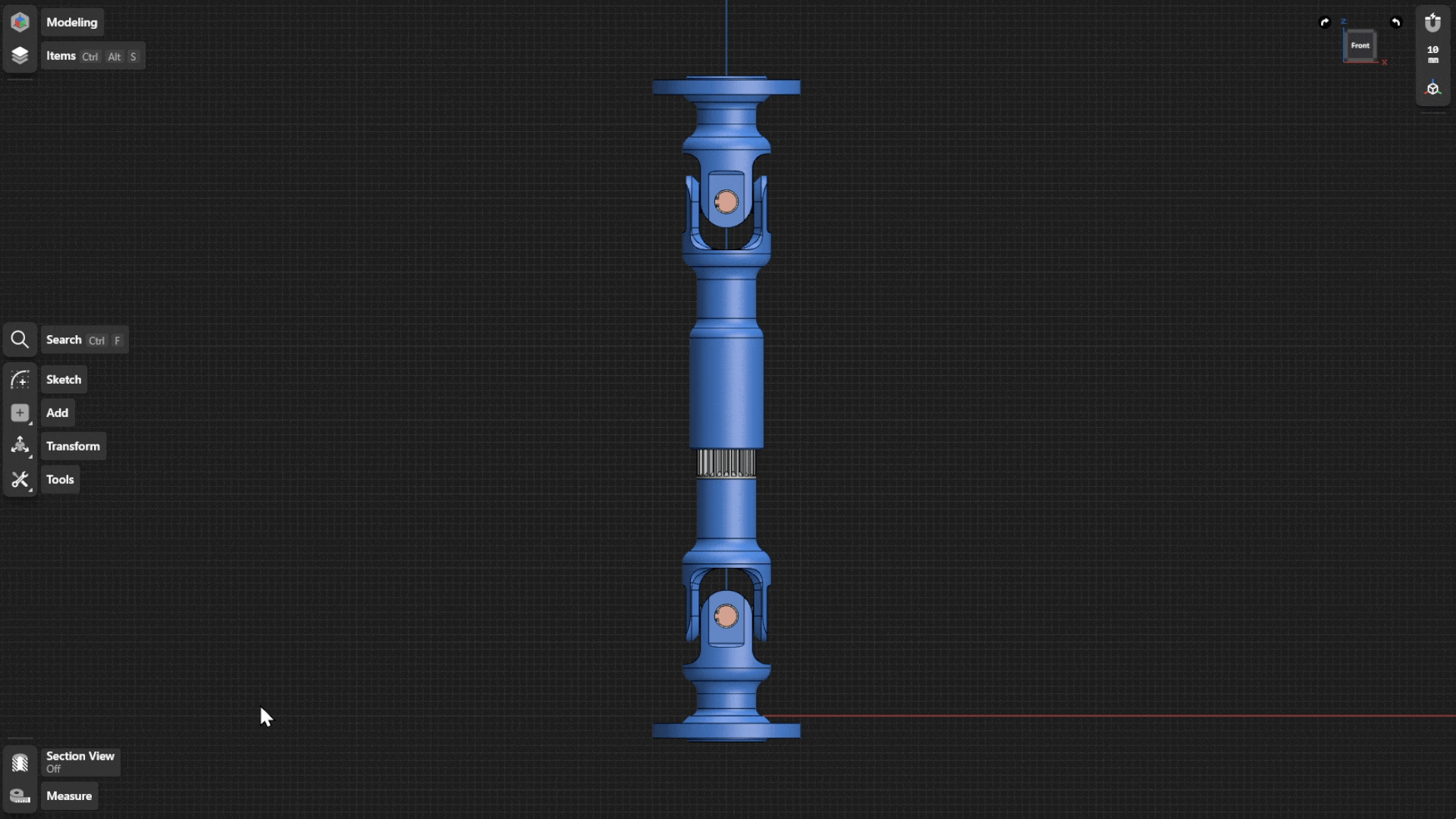

Section View color indicator

The color indicator for Section View now pops more, giving you better visibility when looking at the interior of your models.

Simply turn on Section View just how you normally would and effortlessly view interiors with a more distinct contrast.
