5.870 - Introducing Drafts and New Camera Controls

Organize your projects more intuitively with Drafts, present models from fixed angles, and fine-tune visuals and patterns with added control across tools:

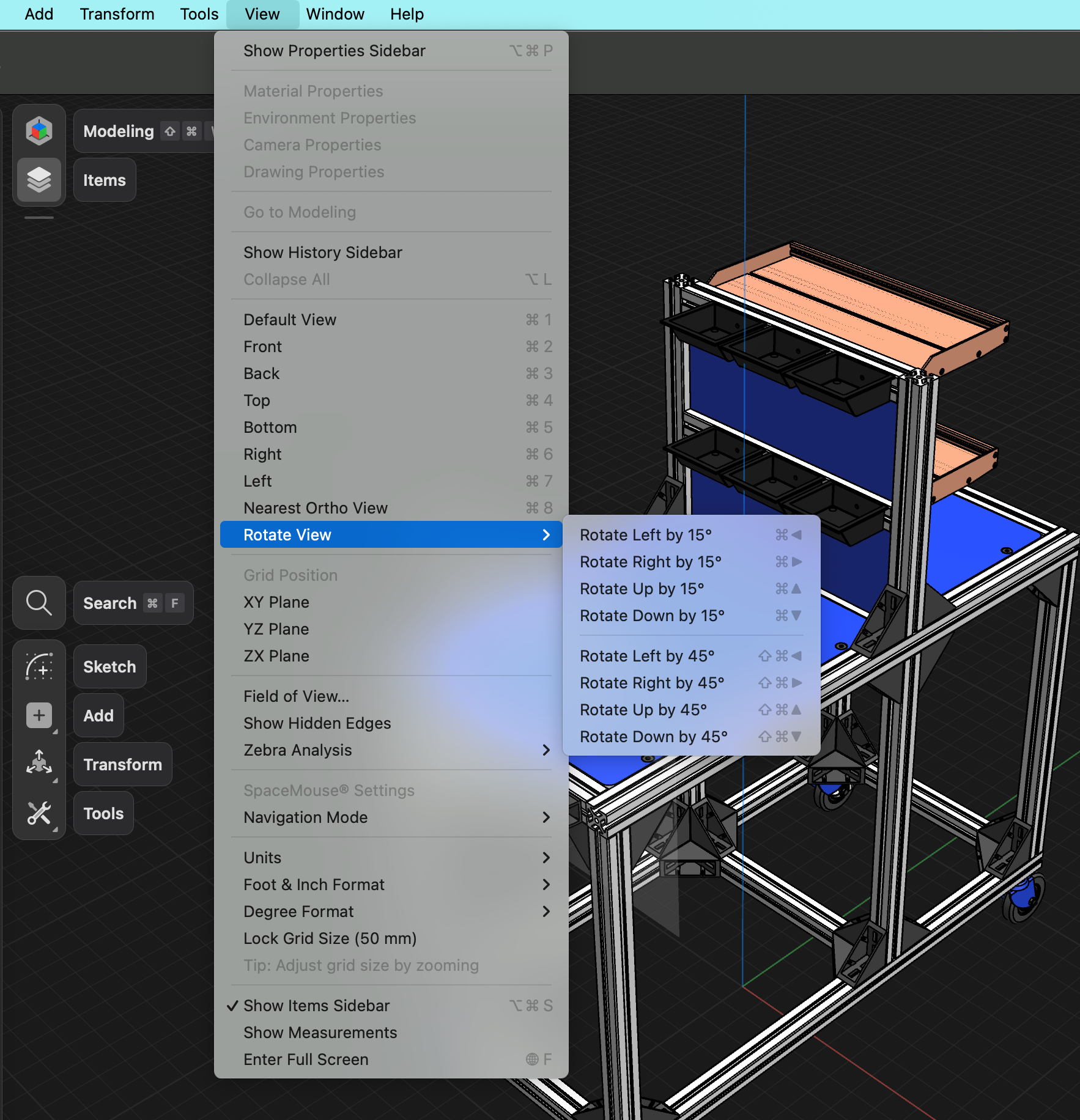

Rotate the camera in fixed increments

Now you can rotate the camera in fixed increments, making it easier to present your model from consistent angles for documentation or stakeholder reviews.

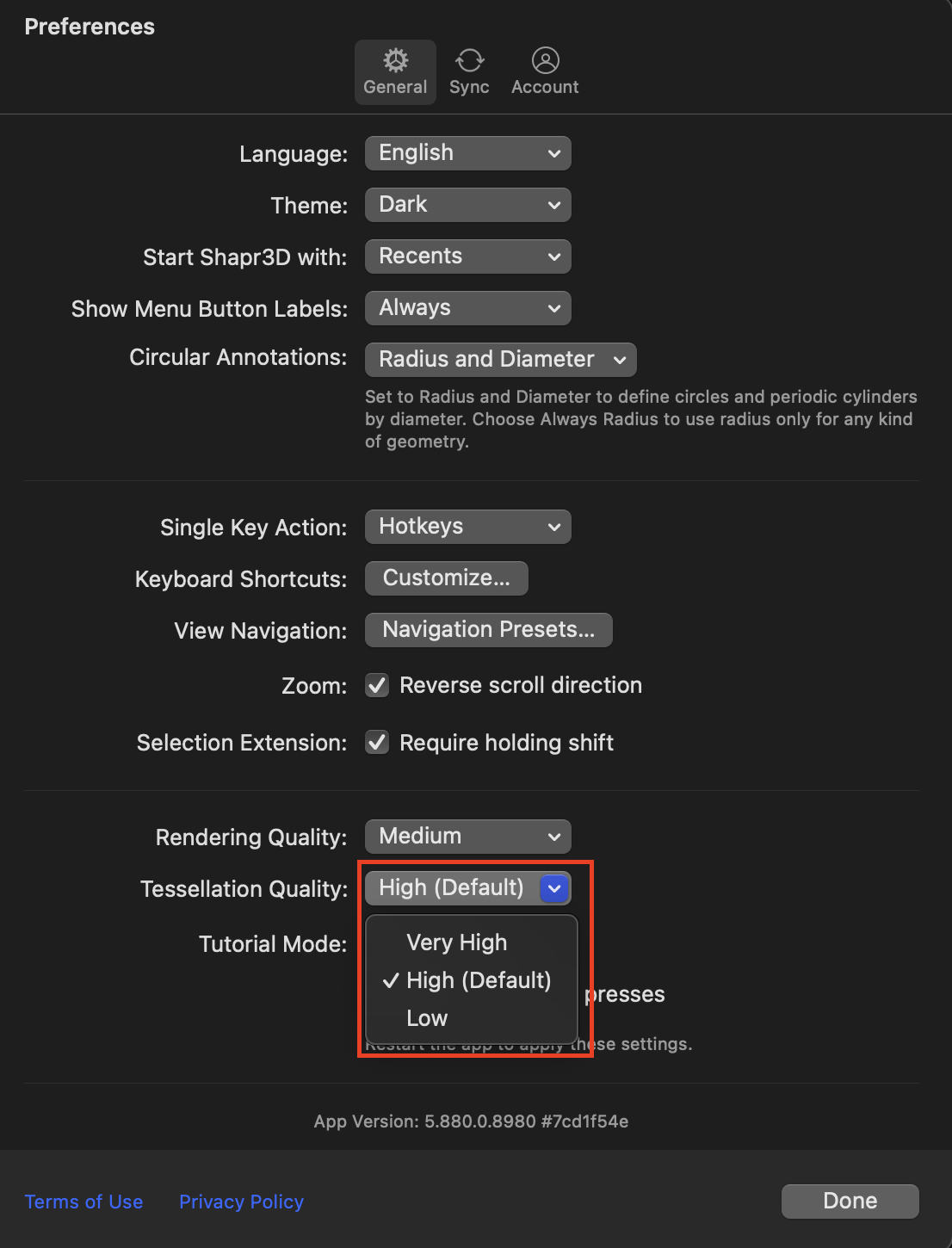

Tessellation settings for mesh detail

Control mesh quality in your designs by selecting low or high tessellation settings. This gives you more flexibility depending on whether you need fast previews or high-fidelity visual output.

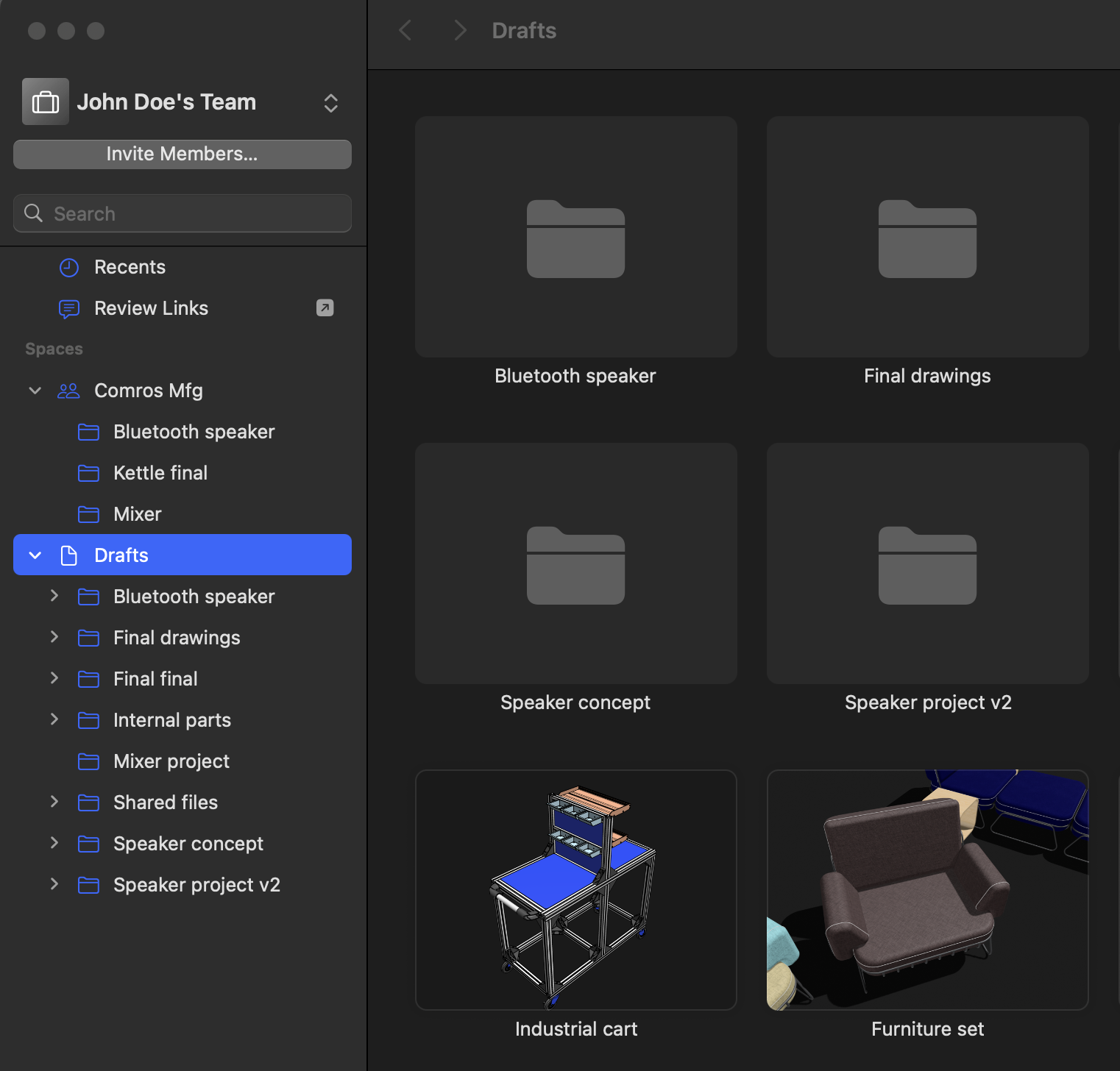

Dashboard update with Drafts and team space renaming

In the Dashboard, the Private section is now called Drafts, keeping your personal designs clear and accessible only to you. You can also rename team spaces to better fit your team’s workflows.

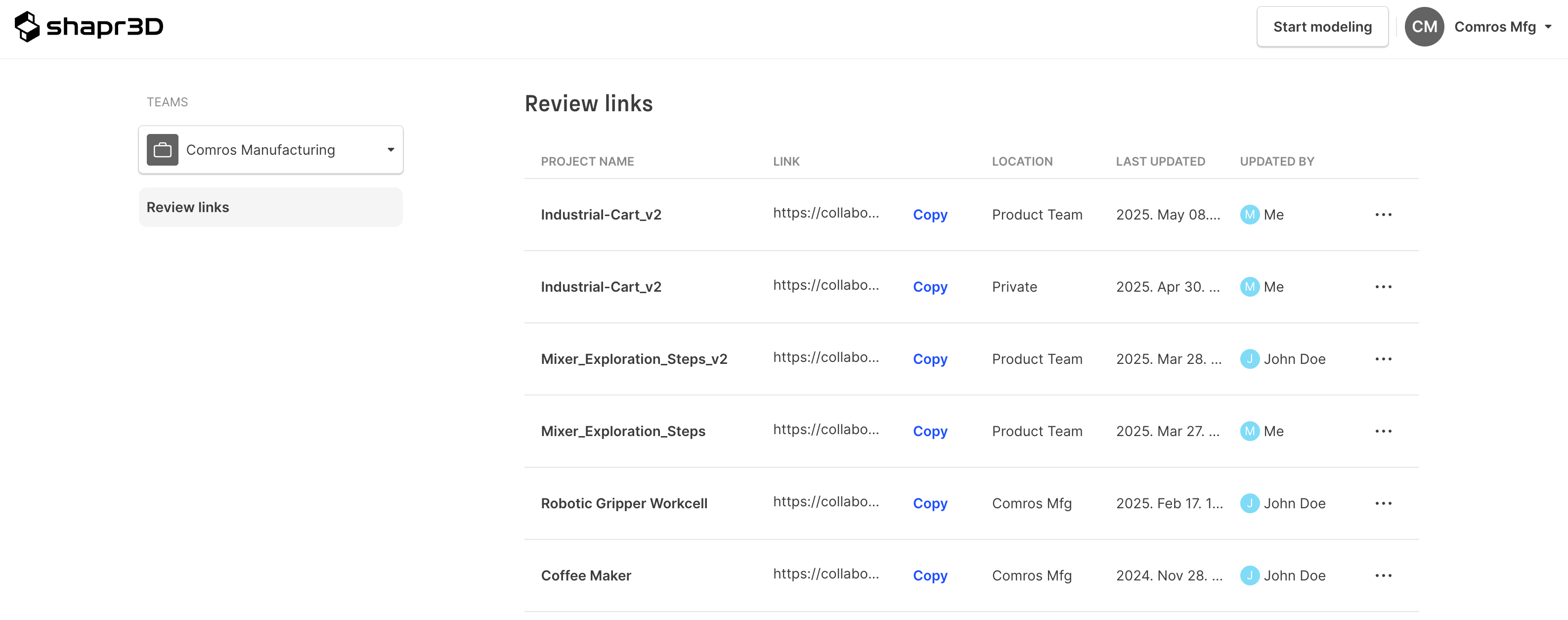

Projects shared via Review links now appear on your account page, making it easier to find, open, or unpublish shared designs from one place.

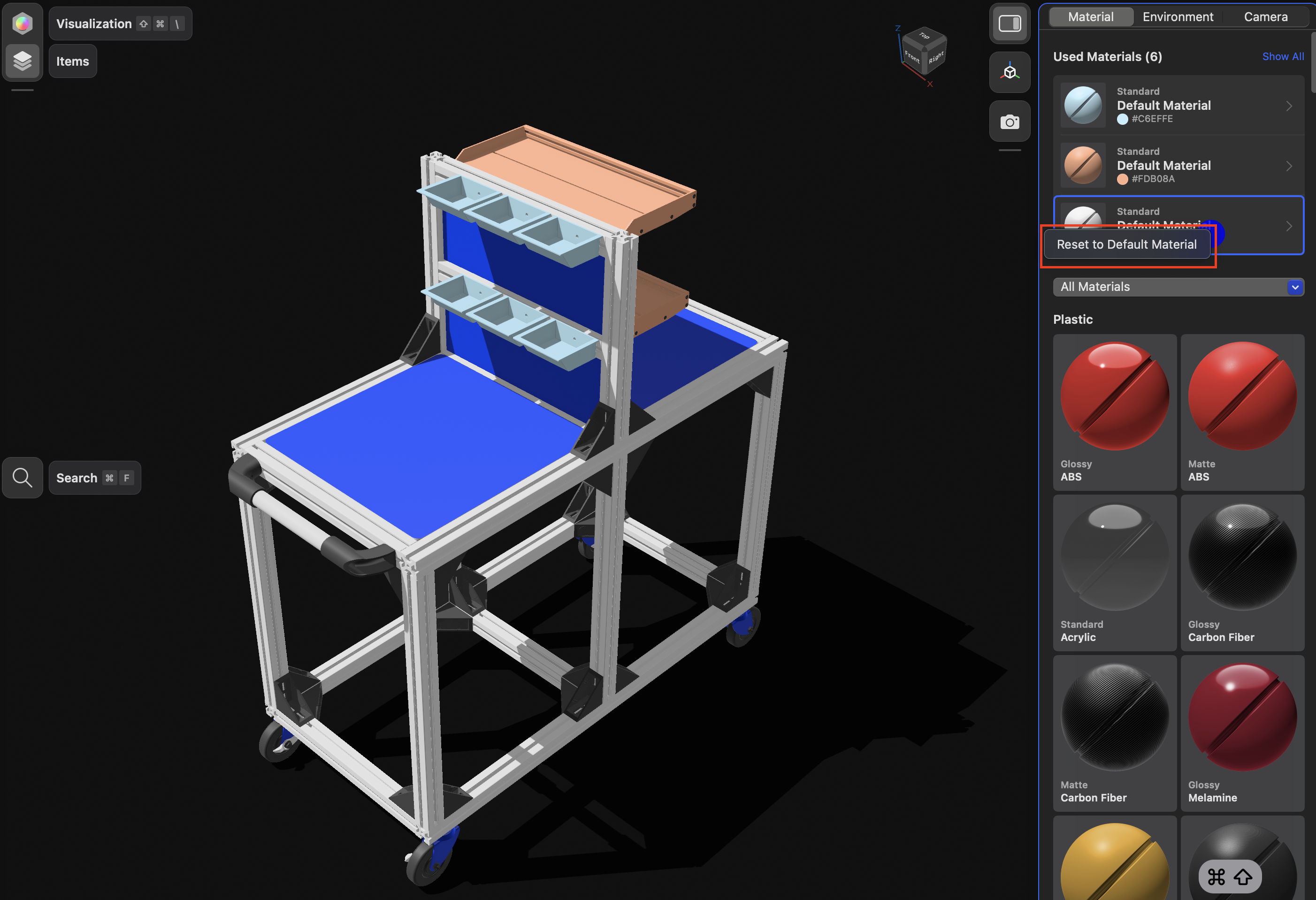

Reset used materials to default

In Visualization, you can now swipe to delete used materials or use the context menu to reset them to their default appearance.


AR performance on iOS 18.3+

If you're using iOS 18 or later, you'll see smoother performance and visual improvements in AR view.
