Navigate your models more efficiently, manage items with added precision, and see exactly who made design changes with these latest updates:
- New: “Reveal in Items” to quickly find selected geometry
- New: Toggle visibility of all or hidden items in Items Manager
- New: Rotate camera in fixed increments and align to face
- Improved: Assign variables to Pattern tool inputs
- Improved: Items now highlight in the modeling space on hover
- Improved: Project Versions now show who edited each version

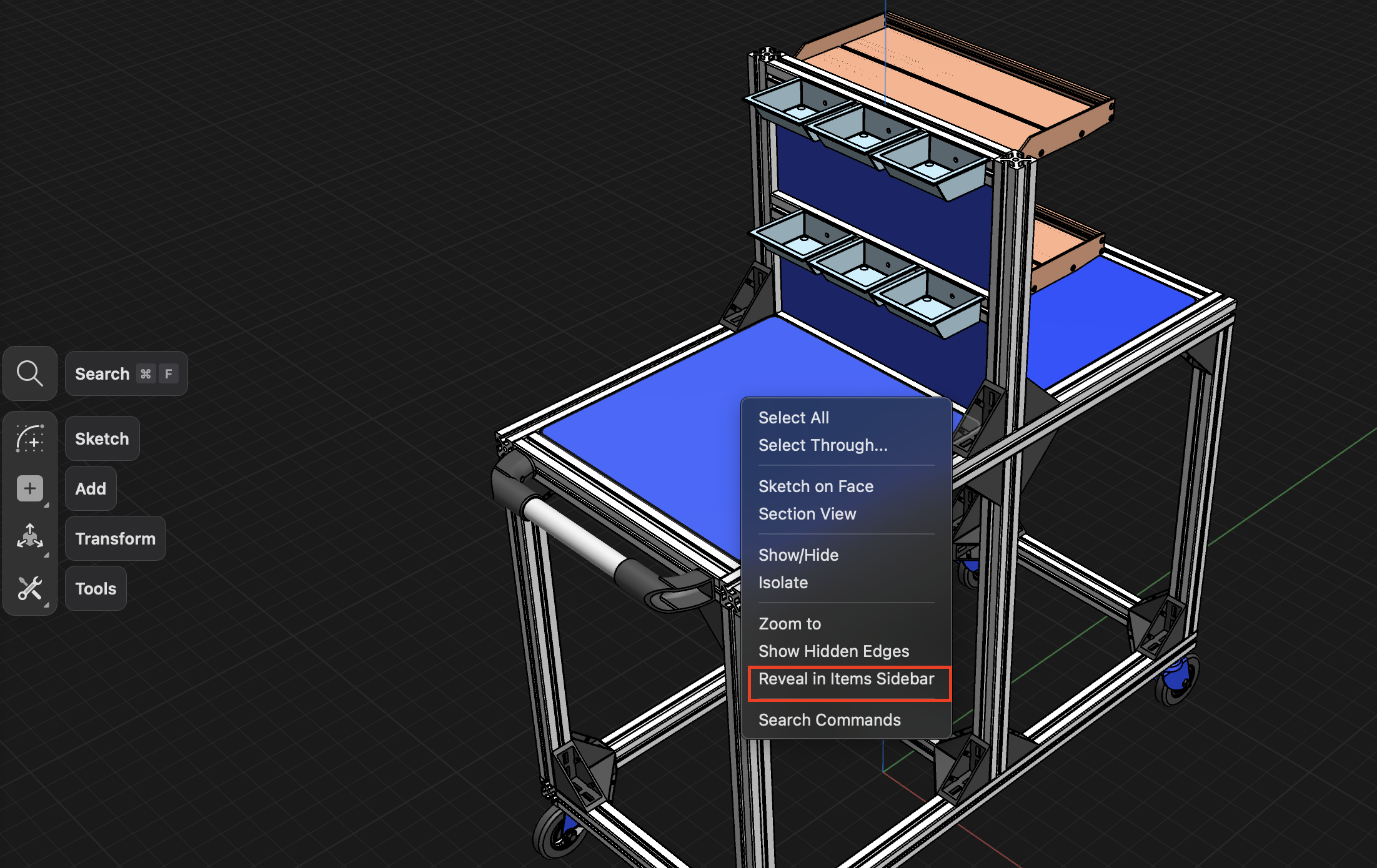

“Reveal in Items” to quickly find selected geometry
You can now right-click on a selected face, body, or sketch and choose “Reveal in Items” to automatically scroll to its entry in the Items Manager. This makes it much faster to locate what you need, even in long lists.

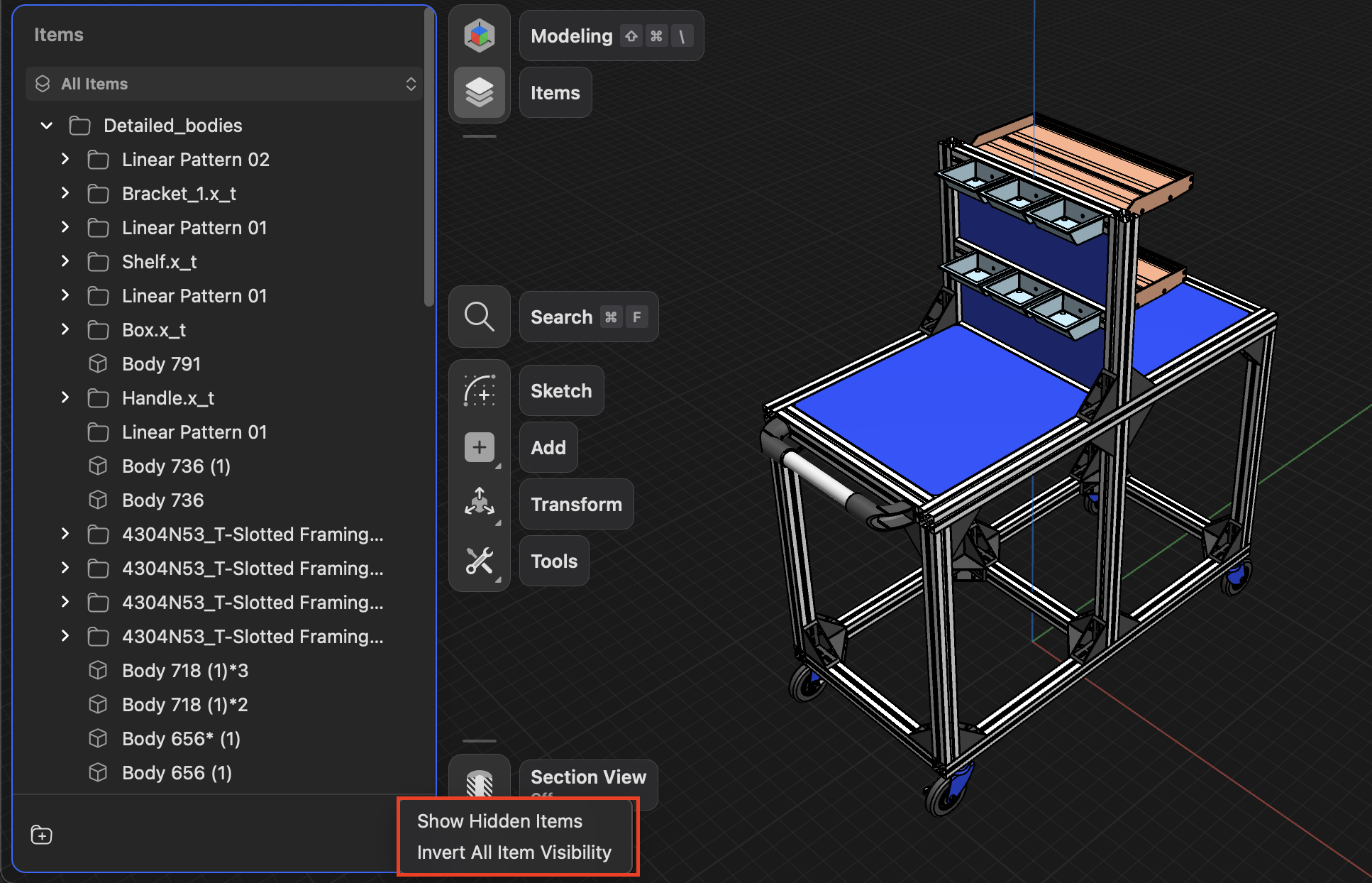

Toggle visibility of all or hidden items in Items Manager
New visibility controls in the Items Manager let you quickly show only the hidden items or flip the visibility of all items at once. These options help you stay organized when working with larger assemblies.

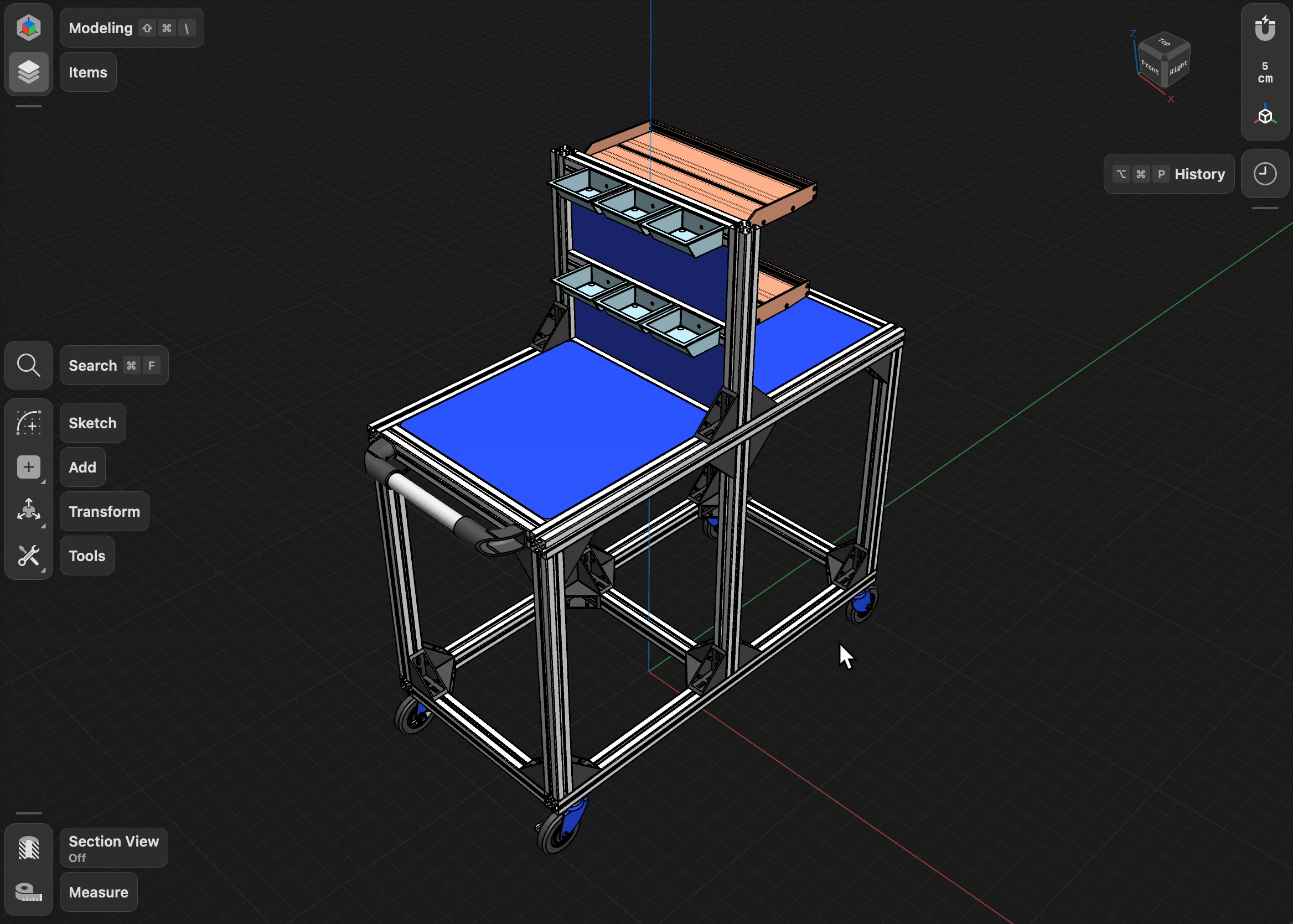

Rotate camera in fixed increments and align to face
You can now rotate the camera in set increments, snap to the nearest orthographic view, or align the camera to a selected face. These tools make it easier to present your design from clear, consistent angles.
Assign variables to Pattern tool inputs
The Pattern tool now supports variables for parameters like the number of instances, distances, and angles. This gives you more flexibility when creating parametric relationships that update automatically as you design.

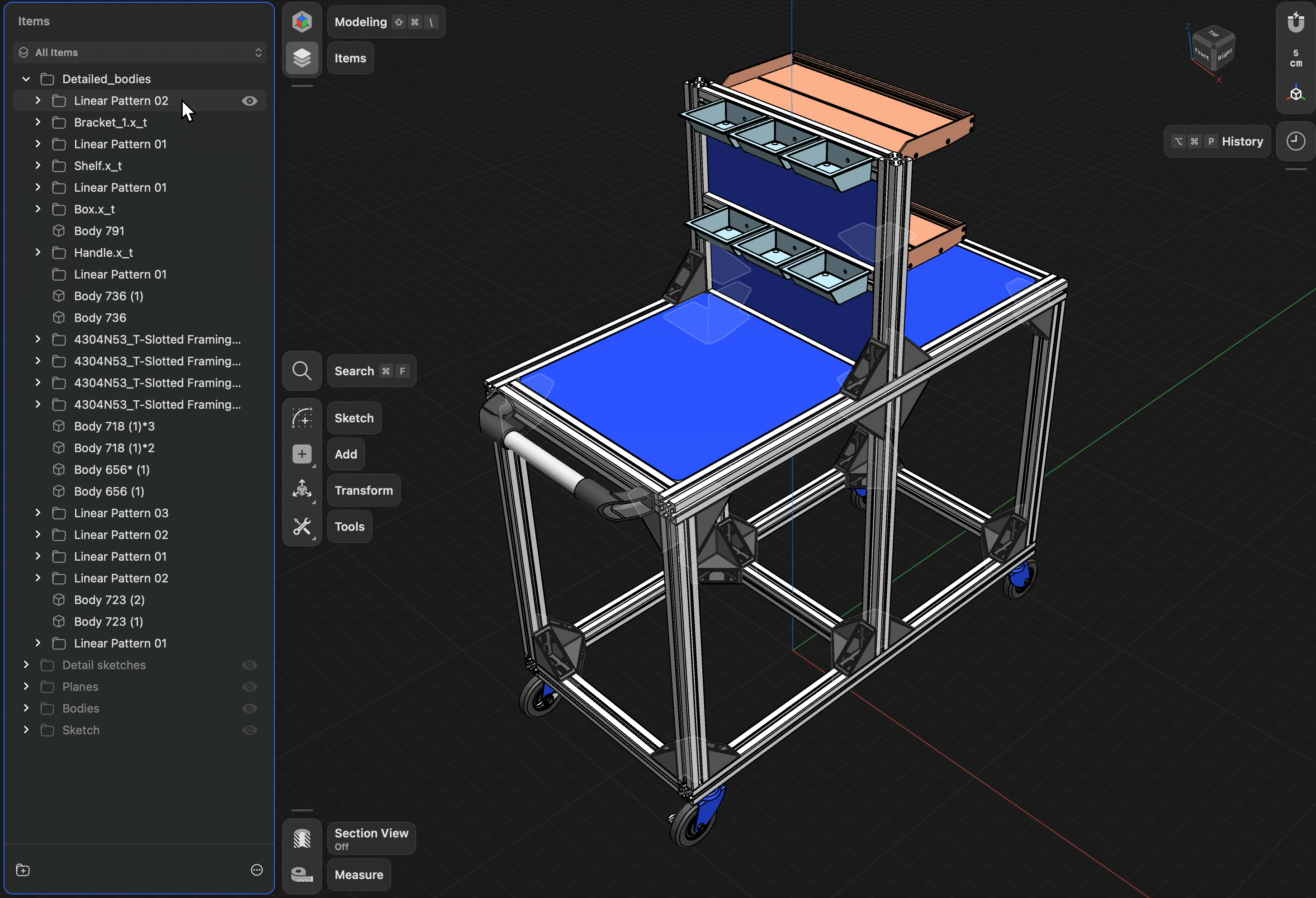

Items now highlight in the modeling space on hover
When you hover over items in the Items Manager, they’ll now highlight in the modeling space. This visual feedback helps you avoid guesswork and speeds up selection and review.

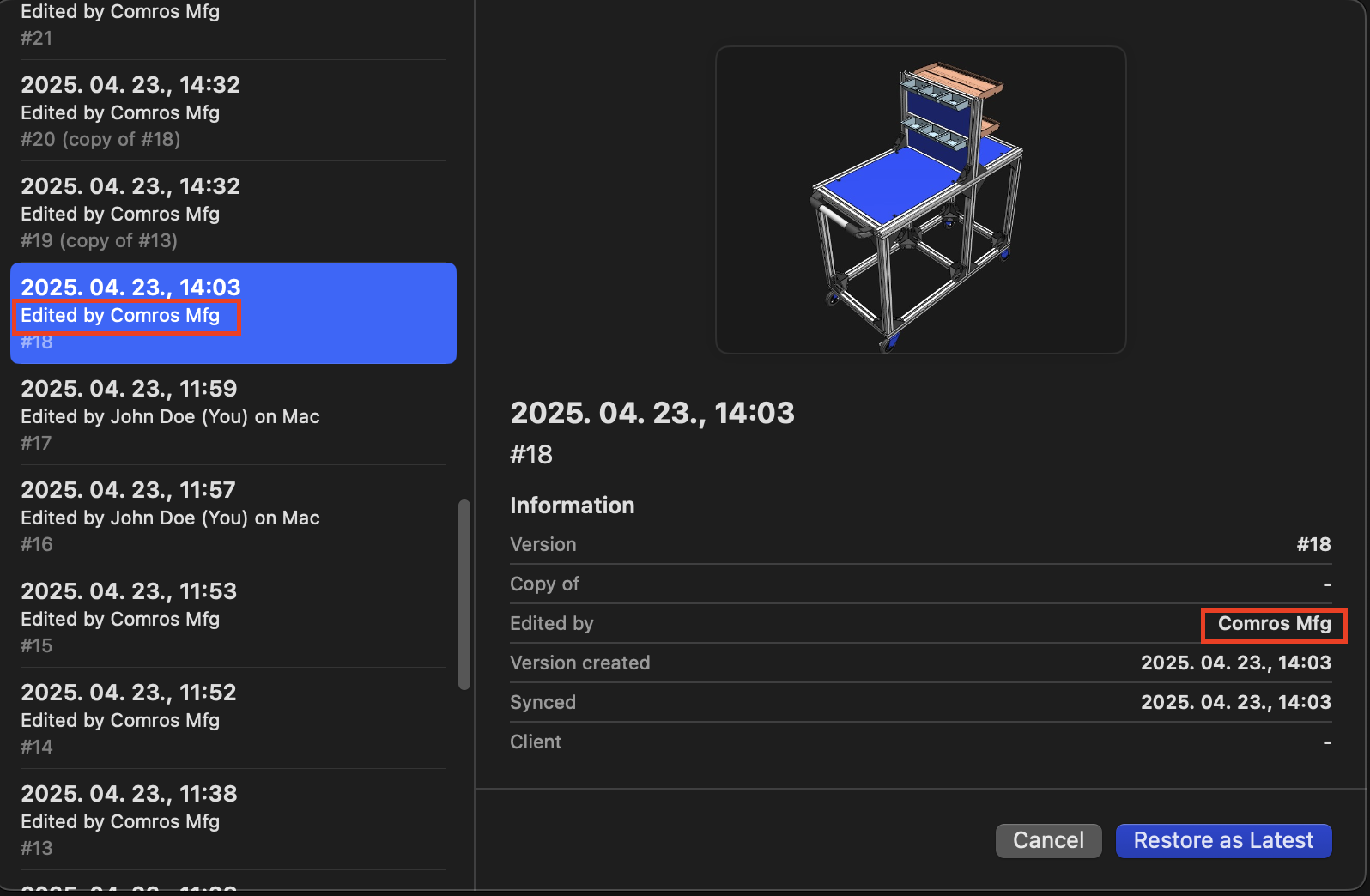

Project Versions now show who edited each version
The Project Versions dialog now shows which team member edited each version. You’ll see usernames listed in both the version list and the detailed view to make collaboration and tracking easier.
