Chamfer/Fillet

You can use the Chamfer/Fillet tool to add an angled face or radius at the edges of your design.

Chamfer		Fillet

The type of geometry that is created is based on how you manipulate the arrows for the tool and the settings you select. The basic method is to select an edge and use the arrows as described below.

• Chamfer: Drag the arrows in towards the body.
• Fillet: Drag the arrows away from the body.




To learn more, explore the sections below:

• Creating a basic chamfer
• Creating a 2-distance chamfer
• Creating a fillet
• Understanding fillet settings

Creating a basic chamfer

A basic chamfer creates an angled face that is setback equal distances from the selected edge. For an edge at the intersection of perpendicular faces (90°), a basic chamfer would produce a 45° bevel. The dimension that you define for a basic chamfer is the distance the chamfer is set back from the original edge. To create a basic chamfer:

1. Go to Tools > Chamfer/Fillet.
   💡 Tip: For other methods of accessing this tool visit: Accessing tools.
2. Select the edge or edges you want to chamfer.
3. Define the chamfer using these methods:

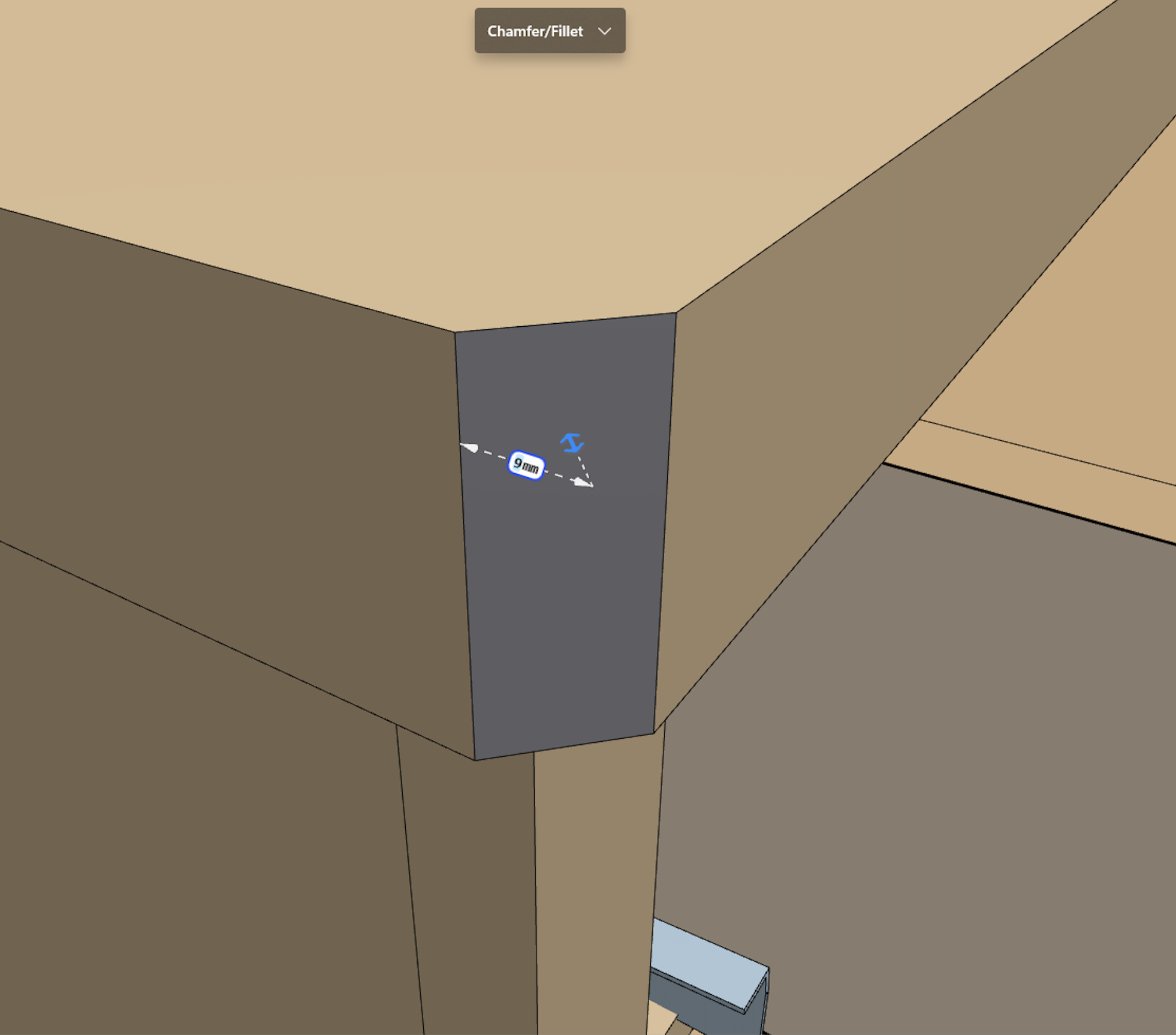

   • Drag the arrows towards the body to size the chamfer dynamically.
   • Select the arrows or dimension label to enter a value for the chamfer size using the numpad.
   • If using a keyboard, type a negative value when the dimension label is highlighted.
     Note: Negative values will define a chamfer, positive values will define a fillet radius.
4. Select Done.
   Note: When using Chamfer/Fillet from the adaptive menu, select an empty area of the grid to complete the tool.

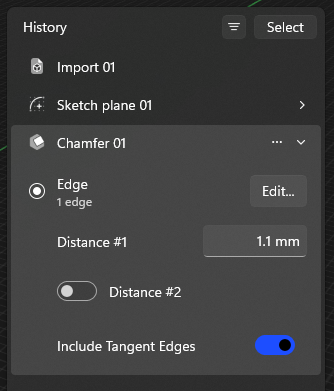

Creating a 2-distance chamfer

A 2-Distance Chamfer is a chamfer that is set back at different distances from the selected edge. To create a 2-Distance Chamfer:

1. Go to Tools > Chamfer/Fillet.
   💡 Tip: For other methods of accessing this tool visit: Accessing tools.
2. Select the edge or edges you want to chamfer.
3. Select Type or menu.
4. Select 2-Distance Chamfer.




5. Define the chamfer using these methods:
   • Drag each arrow away from the selected edge to size the chamfer dynamically.
   • Select the arrows or dimension labels to enter values for the chamfer size using the numpad.
   • If using a keyboard, type a value when the dimension label is highlighted.



6. Select Done.
   NOTE: When using Chamfer/Fillet from the adaptive menu, select an empty area of the grid to complete the tool.

Creating a fillet

A fillet produces a radius at a selected edge. The default fillet settings result in a face with a circular cross-section that is tangent (G1 continuity) to adjacent faces. When three or more filleted edges meet at a corner, the default corner condition is referred to as a Rolling Ball. These settings can be adjusted to fine-tune a fillet (see Understanding fillet settings).

To create a default circular fillet:

1. Go to Tools > Chamfer/Fillet.
   💡 Tip: For other methods of accessing this tool visit: Accessing tools.
2. Select the edge or edges you want to fillet.
3. Define the fillet using these methods:
   • Drag the arrows away from the body to size the fillet dynamically.
   • Select the arrows or dimension label to enter a value for the fillet size using the numpad.
   • If using a keyboard, type a value when the dimension label is highlighted.
     💡TIP: Negative values will define a chamfer, positive values will define a fillet radius.

4. Select Done.
   Note: When using Chamfer/Fillet from the adaptive menu, select an empty area of the grid to complete the tool.

Understanding fillet settings

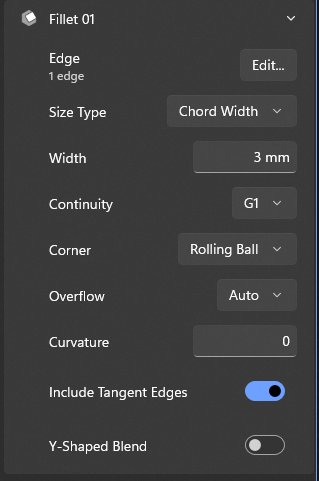

Fillets can be modified to adjust their profile, corner type, and continuity conditions. You can use the on-screen elements shown below to make these adjustments:

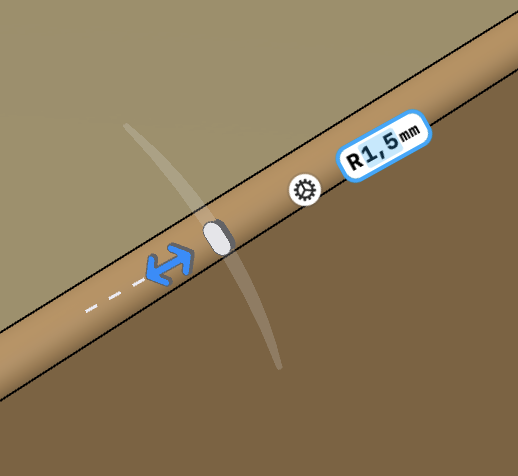

Radius dimension label

This dimension label defines the radius for a default circular fillet. If you make changes to the profile or continuity type, this value represents the setback distance from the original edge, rather than a true radius value.

Settings badge

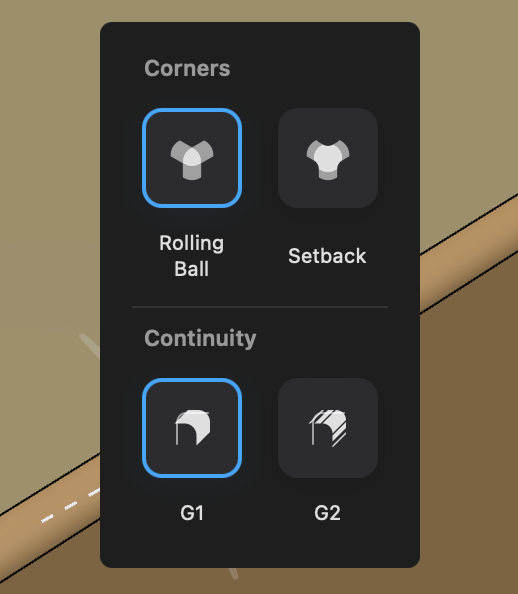

Select the Settings badge to access the menu with the Corners and Continuity options.

Corners

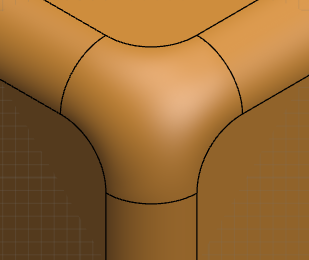

Rolling Ball	This type of corner has a constant radius. This is the default corner type.
Setback	This type of corner sets back the edges where the fillets begin blending into the corner. The blended face has a variable radius.

Continuity

G1	Use this continuity type to maintain tangency between the fillet and adjacent faces. This is the default continuity type.
G2	Use this continuity type to create a filet that matches the curvature of adjacent faces. This produces a smoother transition between the fillet and adjacent faces than G1 continuity. Fillets with G2 continuity will have a non-circular cross-sectional profile.

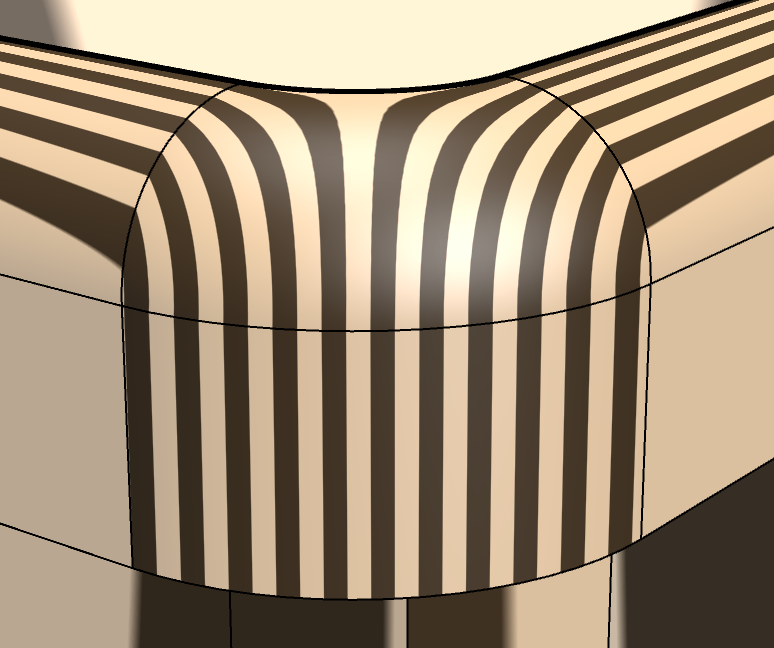

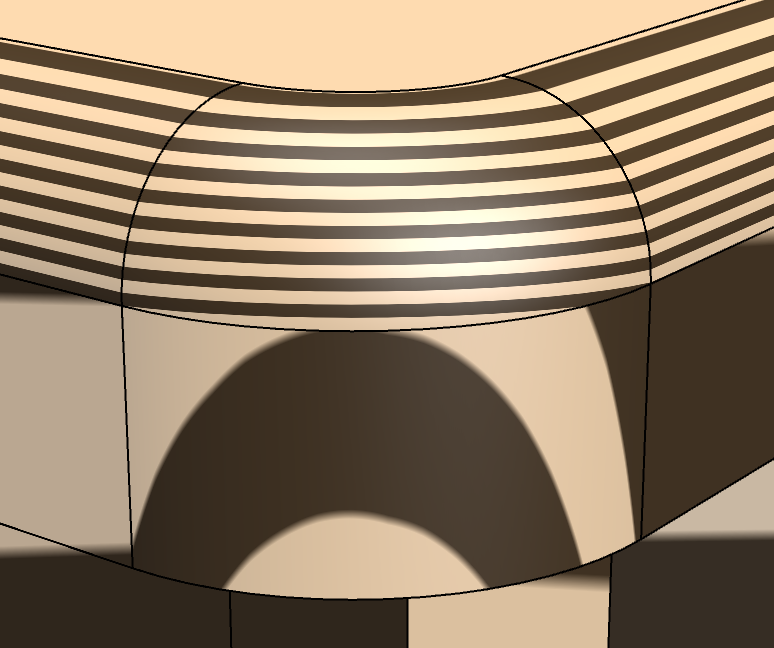

Zebra stripes are shown in the images above to help visualize curvature conditions. For more information on this tool, see Views and Appearance.

Profile slider

The profile slider can change the cross-sectional profile of the fillet. Sliding towards the right will produce a sharper profile and sliding to the left will produce a flatter profile.

Note: Setting a different value than the default will result in losing the radial dimension of the fillet.

Magnitude dimension label

You can use this dimension label to define the magnitude of change for the profile slider. The value can be between -1 and 1. A value of -1 would be a completely flat face and positions the slider all the way to the left. A value of 1 would result in a sharp corner and positions the slider all the way to the right.

For more information on using the Chamfer/Fillet tool, check out the Soften edges tutorial on our website.
