Offset Edge (3D)

The Offest Edge icon-sketch-offset-edge-loop.png tool creates new sketch elements that are offset from existing elements by a specified distance. You can use the Offset Edge tool within a sketch, with sketch profiles, or with the edges and faces of a 3D body.

Note: For information on using Offset Edge within a sketch, visit Offset Edge (Sketch).

To offset from a 3D body:

  1. Go to Tools > Offset Edge.
    For other methods of accessing this tool Accessing tools.
  2. Select Type to access the Offset Edge Type menu.
  3. Choose an offset type:
    • Loop – Offsets a loop of edges from a 3D body.
    • Single – Offsets a single edge from a 3D body.
  4. Select the edge you want to offset.
  5. Use the gizmo to specify the offset direction and distance.
  6. To finish, select Done.

History settings

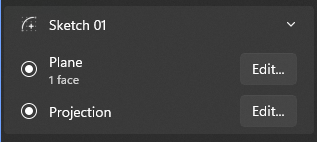

To manage history settings for the automatic Offset Edge action, find the step for your specific sketch and then view or modify the following:

  • Plane – Click/tap Edit… or Select… to modify the plane or face where you want the sketch to be and then select Done.




Learn more by watching the video below:


Read more

For information on using Offset Edge within a sketch, visit Offset Edge (Sketch)
